Description

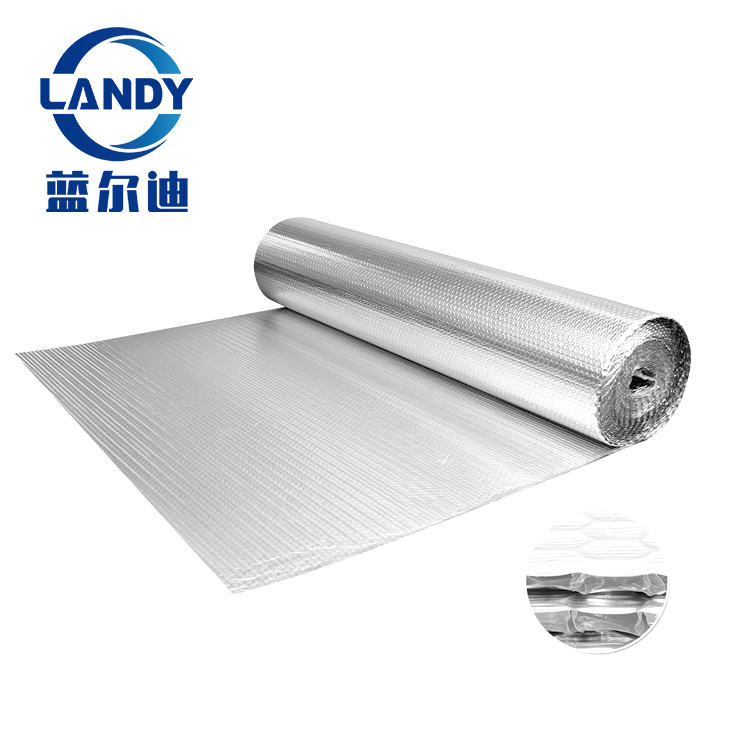

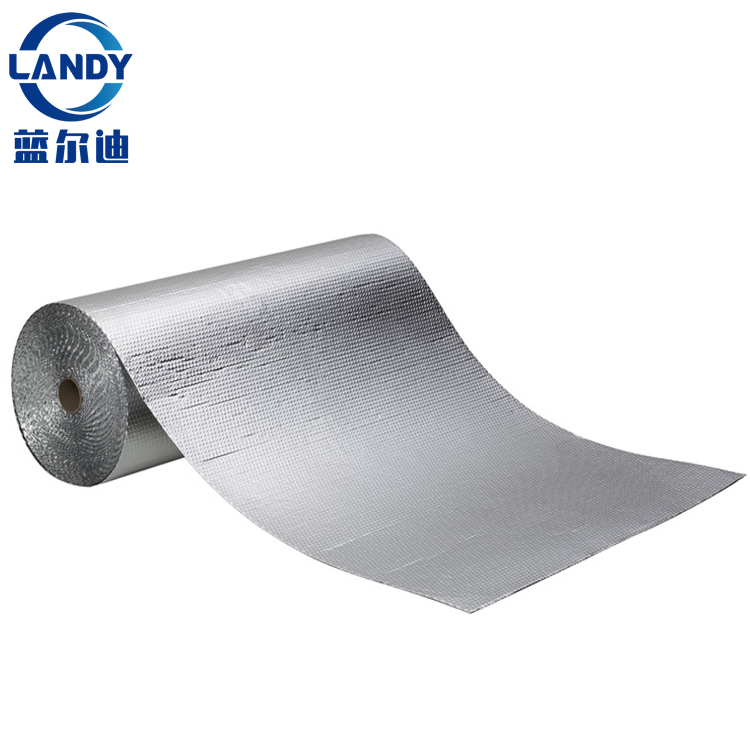

Product Name: Aluminum Foil Single Double Bubble Insulation Roll

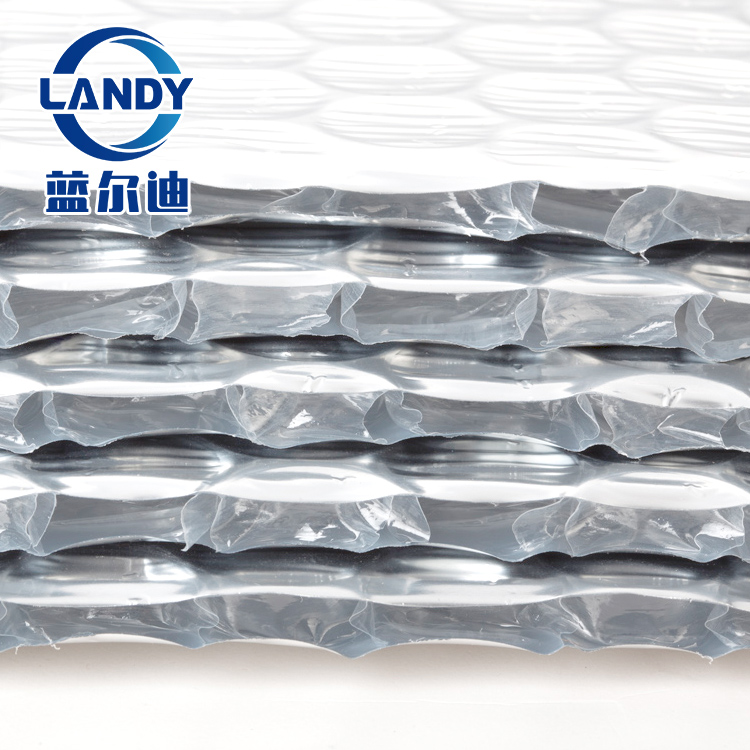

Material: Aluminum Foil + Single/Double Bubble + Aluminum Foil

Specifications: 1.2m/2.4m width x 40m length x 3mm/6mm thickness; customizable

Weight: 130–320 GSM

Colors: Silver aluminum foil; transparent or blue bubbles

Packaging: PE transparent bag

Seaming: Aluminum foil tape

Service Life: 2 years

Features:

Heat insulation & preservation, energy-saving

95%-97% reflectivity, ≥15℃ internal-external temperature difference

Excellent water & moisture resistance

Safe, eco-friendly, non-toxic

Easy to cut, install and clean



Applications:

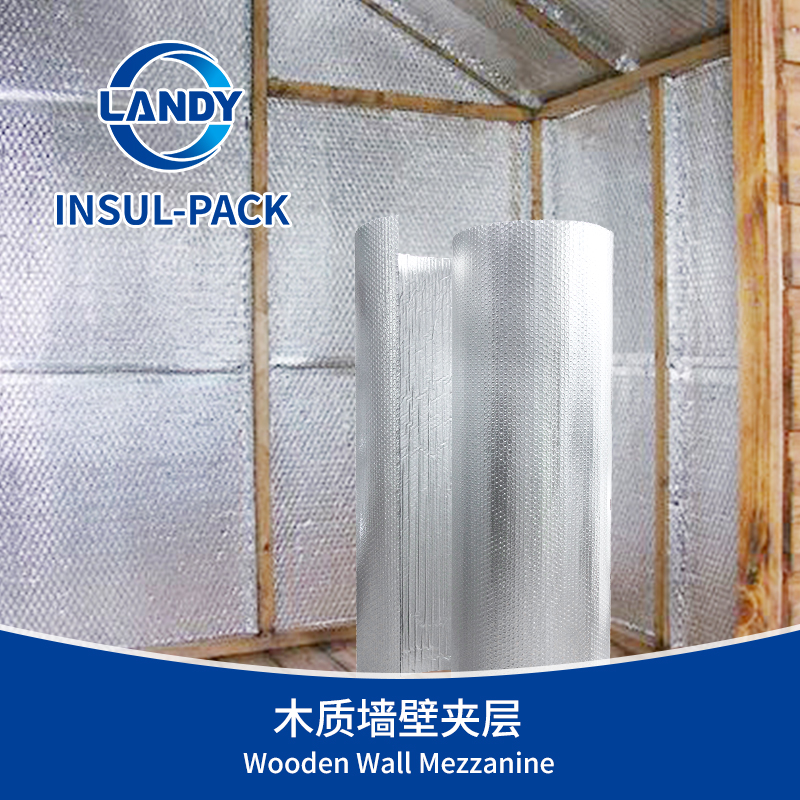

External wall insulation for metal/wood/temporary buildings

Flat/pitched roof and ceiling insulation

Ground insulation

Insulation for air conditioning and heating systems

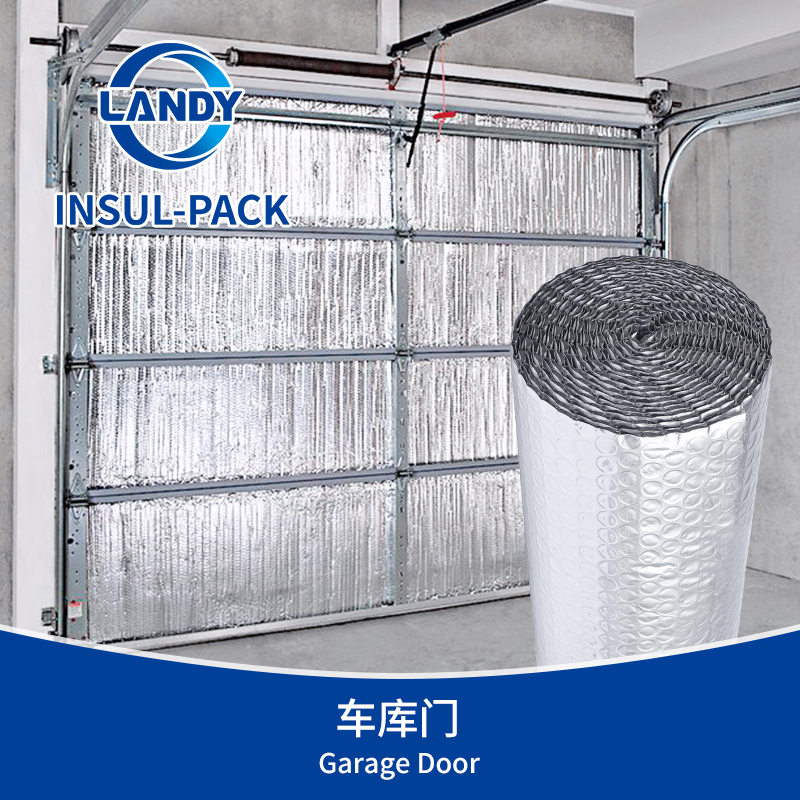

Insulation for doors, windows, stairs, garages, etc.

Insulation for special structures (e.g., breeding greenhouses, cold storage)

Production of related building insulation products

Test Items (Standards)	Technical Parameters
Thermal Resistance (ASTM-C518-21)	0.092 (㎡·K)/W
Thermal Conductivity (ASTM-C518-21)	0.028 W/m·k
Reflectivity (ASTM E424)	95% – 97%
REACH Material Safety (1907/2006)	Pass
High & Low Temperature Resistance (EN 1604:2013)	-40℃-80℃
Tensile Strength (JC/T2494-2018)	370 N/mm
Burst Strength (GB/T1539-2007)	1022 Kpa
Water Vapor Transmission Rate (ASTM E96)	<0.02㎡.h
